DIVA Matrix Processors

The LA Audio DIVA series are intelligent multi-zone Matrix Processors. DIVA series matrix processors are equipped with flexible audio processing and networking functions that are essential to a wide variety of applications. Responsible for the primary audio processing functions at the heart of your building's design.
Ideally suited to; Commercial Buildings, Conference Centres, Houses of Worship, Hotels, Resorts, Retail Parks and Educational Institutions.

DIVA Range Brochure

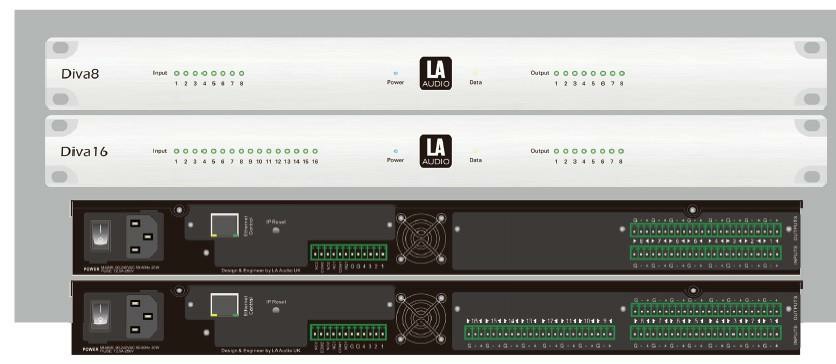

DIVA Matrix Processors are available in 8x8 and 16×8 configuration with high quality Mic/Line inputs, DSP Signal Processing and +48v phantom power per input.

DIVA “N” models bring the power of DANTETM networked audio distribution to expand your capabilities.

DIVA “AEC” models bring Advanced Echo Cancellation (AEC) for crystal clear teleconferencing and network meetings.

Ethernet control and & logic I/O seamlessly interface to your building management system for remote configuration and control whilst the elegant wall controller range allows simple user operation.

Simple configuration for demanding applications: Download a pre-designed DSP app for your system and tailor it using the DConsole software.

No matter how complex your requirements, the LA Audio DIVA range offers a scalable solution to audio distribution, control and processing.

Inputs and Outputs

Input Impedance: 10k Ohms
Output Impedance: 50 Ohms
Maximum Level: +20dBu (Mic Gain:0/+40dB steps)
Type: Electronically balanced (48V Mic Phantom Power)

Audio Performance

Frequency Response: +/-0.1dB(20 to 30kHz)
Dynamic Range: 115dB typ (unweighted)
100dB(50 to 10kHz)
Distortion: 0.001%(1kHz@+4dBu)

Digital Audio Performance

Processor: 40-bit Floating Point
Sample Rate: 48kHz
Analogue Converters: High Performance 24-bit

Front Panel

Signal LEDs: 1dual colour per channel
Status LED: Power and Network Data


Analogue I/O: Phoenix Plug-in 3.5mm (included)
Logic In-Relay Out: Phoenix Plug-in 3.5mm
Ethernet &Network I/O: RJ45 (CAT5)
Power: Standard IEC Socket
