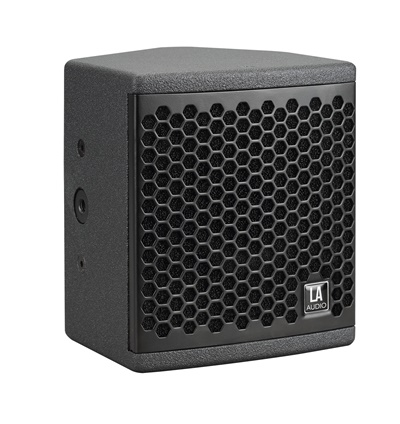

Cute5
OVERVIEW
TECH SPECS
Cute series is a super small volume, ultra-high performance coaxial passive two-way loudspeaker system. Cute5, cute10 and cute12 use 5-inch, 10-inch and 12-inch coaxial units respectively. The bass series also uses ultra-small box and high-performance 12 inch and 18 inch subwoofer. Cut series loudspeakers use a proprietary coaxial drive (horn assembly), highlighting the consistency and stability of off-axis performance in design. This design has superior mode control and more consistent frequency response than the centrifugal drive design. The cute series has a carefully integrated coaxial solution that provides higher speech clarity and higher gain before feedback. They provide excellent clarity and consistent sound expression even at high sound pressure levels. The beautiful appearance and compact size can be matched with many architectural styles, and make it carefully integrated with various buildings and landscapes to bring comfortable vision to the audience. The cut series also offers a wide range of mounting accessories to facilitate your various installations, which can be easily hung or wall mounted in any case. They can also provide monitoring for the stage (monitoring angle: cute5: 58.5 degrees, adjustable with cute5 LB bracket; cute10: 40 degrees or 55 degrees; cute12: 40 degrees or 55 degrees). Combined with bass speaker bass12b or bass18b, the function of cut series speakers can be more prominent. No matter where you want to use it, the cut series can meet your requirements.

Model No.

Cute5

Enclosure

12mm birch plywood   with structure paint

Principle

2 way passive system

Grille

power coated steel   mesh

Components

LF: 5” woofer with   1.5”voice coil,

HF: 1.75” voice coil;

passive crossover   with phase correction

Frequency Response

75Hz-20kHz

Power HandlingAES/peak

200W/800W

Impedance

Coverage PatternH×V

70º conical

Sensitivity(1W/1M)

93dB

Max SPL (peak)

121dB

Connector

Neutrik NL4×2

Suspension points /mounting

3/8” bolt point×1

Dimensions(H×W×D)

180×155×165 (mm)

Weight

3.5kg

Accessories

Cute5-lb

Colour

available in black   and white, other color need to be customized

Digital processing

LA Audio DLX260/   DLX480
